Saturday 23 June 2012

No Help!


When you enter a search term within Revit,     image
your internet browser is launched to display Autodesk WikiHelp.
It may return no results:-
No worries. Just type your search in the webpage instead and you should get some results.  To save time, don’t bother typing it in Revit.  Just click on the binoculars icon instead.

Edit: If you experience this problem then contact your IT department.  It may be due to proxy restrictions stopping the search term from being passed to the web page.

Walls Don't Join

When one wall is sitting upon another you can be left with a seem.  Using the join tool often cleans up this line.  But If the walls wont join and leave an unwanted seam, it generally means that the walls have different materials or the faces don't line up.

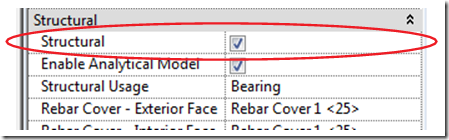

One less obvious difference is the wall's structural setting under its instance properties. If one wall has 'Structure' ticked when the other does not, they won't join.


Sunday 17 June 2012

Ctrl + ←=Speed

I have always been an advocate of keyboard shortcuts and in my AutoCAD days didn't have a toolbar in sight. Shortcuts can really boost productivity and keep the mouse close to the action rather than flying around the screen.

I have found many users to be resistant to using shortcuts and their workflow can suffer as a result. I think it is perhaps off putting to many having to remember so many abstract key combinations.

My approach is to tackle one shortcut at a time. If you are carrying out a repetitive task then take note of the shortcut for the tool and use it. It will soon lodge in your brain.

Revit is helpful here. Just hover over the tool on the ribbon to display a tool tip. You will see a keyboard combination in brackets.

Shortcut tooltip

If not, then a keyboard shortcut has not been assigned.  Why not assign one now? Adding Keyboard Shortcuts in Revit

Don’t be tempted to click the button.  Now is your first opportunity to use the shortcut.  I will perhaps write about custom Revit shortcuts in the future but I wanted to bring some others to your attention that will help you improve productivity and reduce repetitive strain injury.  Don’t forget to use Ctrl+Tab to switch between open views.

System Shortcuts

General shortcuts are available in a whole host of programs so you will reap benefits when emailing, word-processing or organising folders and files.  There are many available in windows but here are a few which really speed up text editing, especially in Revit.

  • F2 to rename.  Try selecting a view in the project browser and rename it.
  • Use Ctrl with cursor (arrow) keys to skip entire words(ßà) or paragraphs(á â) at a time.
  • Hold Ctrl+Shift (I hold them with one finger) with cursor keys to select entire words or paragraphs at a time.
  • Hold Ctrl with backspace or delete to delete entire words at a time.
  • Home Shift+End or Home to select whole lines whole lines.

The Home and End keys are really overlooked.  They are above the cursor keys on the keyboard.  I find this useful in Revit when you cannot see the entire line of text.  Press the end key to skip to the end of the line.  This is great in the modeless properties palette where moving mouse outside of it applies changes.

Try this next example to move a word from the end of a line to the beginning:

Press End, then Hold Ctrl+Shift and press ß(just tap), then Ctrl+X, then Home, then Ctrl+V, then Spacebar.

Thursday 7 June 2012

Mass - Update to face

Curious little situation I came across in Revit 2013.  Not sure if this happened on previous versions.

I created a roof using a mass form.  Of course changes were needed so I edited the in-place mass and hit finish.  I highlighted the roof but the Model by Face options were greyed out as shown in the image below.

clip_image001

There seems to be simple fix to work around this issue.  With the roof highlighted, shape handles are available.

clip_image002

Dragging a shape handle will bring up a warning dialog.  Just hit cancel. (if it doesn’t then just hit undo)

clip_image003

Now your options are available.  Go ahead and click Update to Face.

clip_image004

Seems as though you have to give a little bump to wake thing up.  Thank you Revit for keeping it user friendly Winking smile
